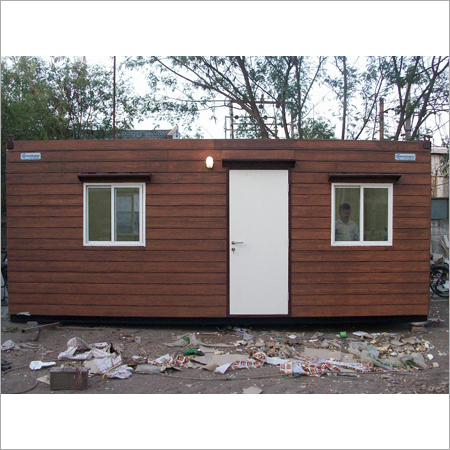

Wooden Textured Porta Cabins

Wooden Textured Porta Cabins
Wooden Textured Porta Cabins
Product Code : 53
Product Description

With an experience of one decade, we are catering the varied demand of the clients by manufacturing and exporting a qualitative range of Wooden Textured Porta Cabins. Widely used as a temporary office or guards cabin, our cabins are designed using the best quality materials at our modern machining facility. These Wooden Textured Porta Cabins can be customized on the parameters of design and sizes. Our quality controller’s always check these cabins on finishing and durability parameters before making available for the clients at reasonable price.

Features:

  • Less maintenance

  • Easy to shift

  • Quality standard

  • Resistant to termites

  • Long lasting construction

  • Robust construction

  • Light weight

Technical Specification

PARTICULAR

SPECIFICATION OR PARAMETER

Bottom Frame

ISMC 100x50mm.

Top Frame

50mm x 50 mm x 2mm thick SHS.

Stiffener Bottom

60mm x 40 mm x 2mm Rectangular Pipe (600 mm Grid).

Stiffener Top

25mm x 25mm x 2mm thick MS Sq Pipes.

Side Post

Square pipes of size 50mm x 50mm x 2mm thick.

Side Wall Stiffeners

40mm x 20mm x 1.6mm thick MS Square Pipe.

Paneling Outside

Specially formed M.S. Corrugated Sheet -1.2mm Thick.

Internal Wall Paneling

9mm pre laminated particle/MDF board.

Roof Outside

M.S. Sheet 1.2mm thick properly sloped and water tight, to form roof.

False Ceiling

9mm Pre Laminated Particle/MDF Board, Plane White.

Bottom Flooring.

18mm cement bonded fiber sheets. (100% water, termite & dimensional proof with 1.2MM Thk vinyl carpet.)

Aluminum Windows - 2 nos. Size - 3

Double Shutter sliding Aluminum Powder coated Windows with 4mm Glass for all windows. Safety grills from outside and monsoon shed on top of the windows

Door - 1 no. Size - 6 x 3

Constructed of Rigid Steel Frame with proper locking system.

Insulation

Thermocol Insulation-25mm on sides and 50mm on top.

Wiring

All wiring shall be concealed type & shall be insulated copper wire (FR

grade) of ISI Polycab/Fortune Art/Ronaldo/Finolex.

Electrical Fittings

All electrical fitting in the portable cabin shall be 220 -240 V, AC 50Hz.
1) Tubes lights - 3 nos.
2) Door Light- 1 no.
3) Fan - 2 nos.
4) 5 amp Socket Points - 4 nos.
5) 16 amp A.C Point - 1 no. 6) Earth leakage circuit breaker (ELCB) at the INPUT JUNCTION for additional SAFETY.

Outside Painting

Complete chemical cleaning done on the cabin and painting done with 2 coats of epoxy primer and two coats of Chlorinated Rubber paint - Make ASIAN/BERGER.

Hooks

Specially formed hooks for easy lifting and shifting.
