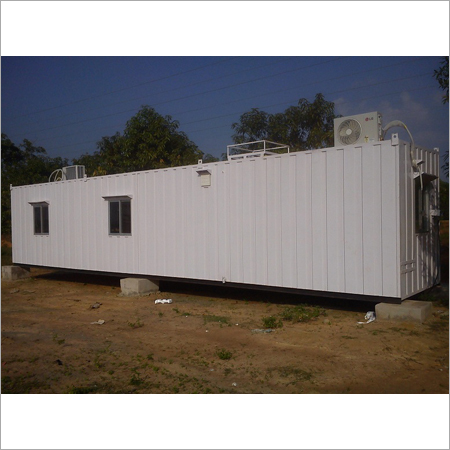

Porta Cabin 40fts

Porta Cabin 40fts
Porta Cabin 40fts
Product Code : 49
Product Description


Starting with a modest beginning in the year 1997, we are one of the leading manufacturers and exporters of a qualitative range Porta Cabin 40fts. These cabins are developed and designed by our well experienced professionals using high quality materials procured from the authentic vendors. We can avail Porta Cabin 40fts with customized floor, roof ceiling, walls and doors as per the requirements of the clients. Furthermore, our clients can avail these cabins from us at pocket friendly price.

Features:



  • Less maintenance

  • Precisely Constructed

  • Elegant design

  • Light weight

  • Excellent finishing

  • Durable

  • Can withstand critical temperature

Technical Specification

PARTICULAR

SPECIFICATION OR PARAMETER

Bottom Frame

ISMC 100x50mm.

Top Frame

50mm x 50 mm x 2mm thick SHS.

Stiffener Bottom

60mm x 40 mm x 2mm Rectangular Pipe (600 mm Grid).

Stiffener Top

25mm x 25mm x 2mm thick MS Sq Pipes.

Side Post

Square pipes of size 50mm x 50mm x 2mm thick.

Side Wall Stiffeners

40mm x 20mm x 1.6mm thick MS Square Pipe.

Paneling Outside

Specially formed M.S. Corrugated Sheet -1.2mm Thick.

Internal Wall Paneling

9mm pre laminated particle/MDF board.

Roof Outside

M.S. Sheet 1.2mm thick properly sloped and water tight, to form roof.

False Ceiling

9mm Pre Laminated Particle/MDF Board, Plane White.

Bottom Flooring.

18mm cement bonded fiber sheets. (100% water, termite & dimensional proof with 1.2MM Thk vinyl carpet.)

Aluminum Windows - 2 nos. Size - 3’ x 3’

Double Shutter sliding Aluminum Powder coated Windows with 4mm Glass for all windows. Safety grills from outside and monsoon shed on top of the windows

Door - 1 no. Size - 6’6” x 3

Constructed of Rigid Steel Frame with proper locking system.

Insulation

Thermocol Insulation-25mm on sides and 50mm on top.

Wiring

All wiring shall be concealed type & shall be insulated copper wire (FR

grade) of ISI Polycab/Fortune Art/Ronaldo/Finolex.

Electrical Fittings

All electrical fitting in the portable cabin shall be 220 -240 V, AC 50Hz.
1) Tubes lights - 3 nos.
2) Door Light- 1 no.
3) Fan - 2 nos.
4) 5 amp Socket Points - 4 nos.
5) 16 amp A.C Point - 1 no. 6) Earth leakage circuit breaker (ELCB) at the INPUT JUNCTION for additional SAFETY.

Outside Painting

Complete chemical cleaning done on the cabin and painting done with 2 coats of epoxy primer and two coats of Chlorinated Rubber paint - Make ASIAN/BERGER.

Hooks

Specially formed hooks for easy lifting and shifting.
